Strum Fix adapter for Riffmaster guitars
Strum Fix adapter for Riffmaster guitars
An adapter and a set of spacers for installing a Strum Fix Plus 2 or a Strum Fix Plus 4 in a PDP Riffmaster guitar. This adapter preserves the ability to fold the neck, and includes two spacers for positioning the Strum Fix so it sits level in the strummer slot. The installation procedure is very similar to installing a Strum Fix in a Jaguar guitar.
The actual color of the product may be different from that shown.
NOTE: The Strum Fix Plus 3 does NOT fit in the Riffmaster guitar (at least not without doing a little cutting/filing on the guitar).
Installation instructions are available here: Google Docs - Riffmaster Install Instructions.
3D Files
If you have a Riffmaster guitar and want to print your own adapter to install a Strum Fix, here are the files you will need. Note that all the files can be printed with a “regular” FDM printer such as a Prusa MK4 or Creality Ender 3 using PLA plastic, although we print the spacers using SLA (resin) printers since those generally work better for small parts.

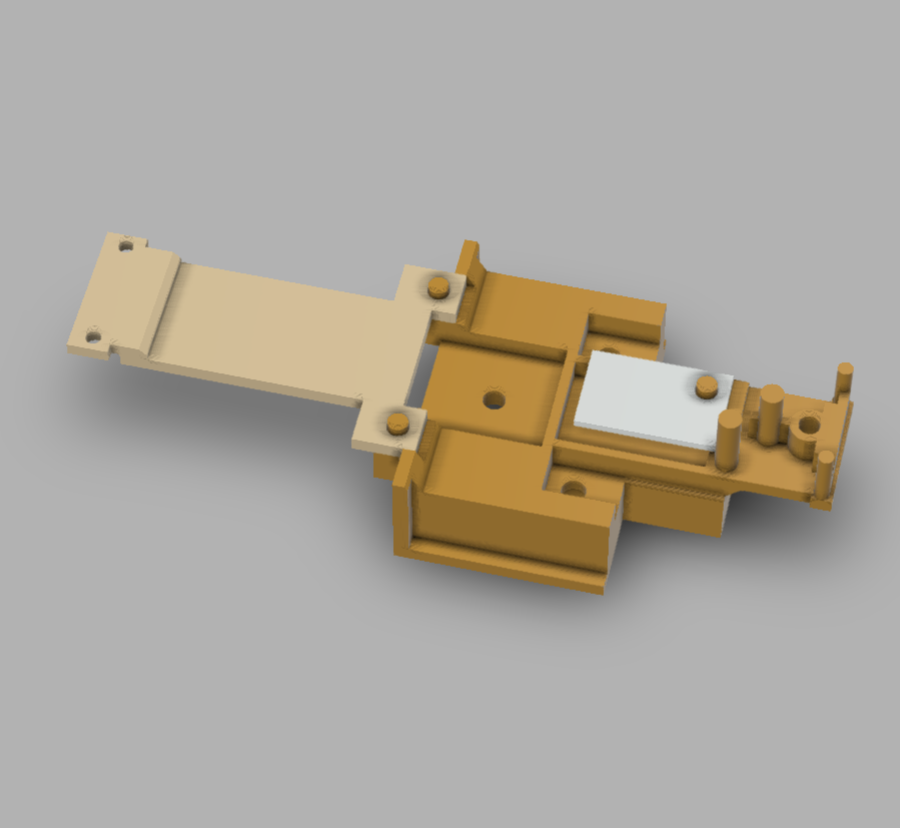

Adapter Body - main part of the adapter, it needs to be printed with supports.
Adapter Tab - attaches with tabs to the main body, this part holds the ribbon cable for folding the neck in place. It can be printed flat on the build plate, but supports may be needed on the small overhangs around the screw holes.
Cable Cover - keeps the ribbon cable in place.
Spacers - you will need 2 of these, they can be printed without supports but will mostly likely need a brim. These spacers make it so the Strum Fix board sits level in the strummer slot on the Riffmaster guitar.
